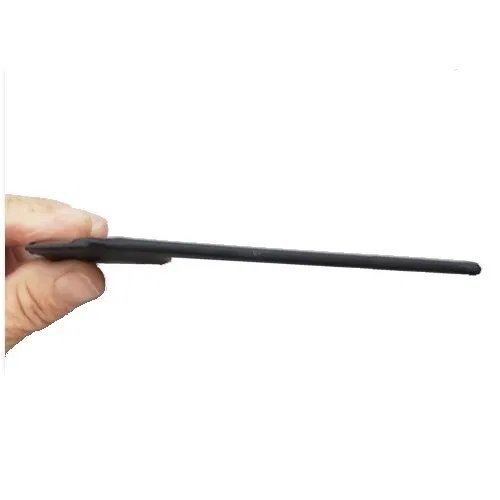

When a long battery life, waterproof and a world beating GPS tracking system is required the slim GPS tracker ticks all the boxes.
The asset tracker can be used for a wide range of applications from tracking people, cars, motorcycles, boats, hand tools, machinery, packages, and many more items the list is endless.
When it comes to vehicle tracking this versatile GPS tracker can be placed in numerous locations on a vehicle both inside and outside, on many vehicles the slim-3000 can be slid behind a number plate in a matter of a few seconds, behind or in the glove compartment ,behind a seat making it the tracker of choice for rapid deployment.
Although this tracker has a small profile it boasts an excellent battery life of up to 15 days in normal tracking mode, this can be greatly extended buy using some of the different tracking modes available to this tracker.
Not only can you view your car tracker from our online console, you can also track the device from your mobile phone both I phone and Android devices using our free App.
Supplied ready to use this tracker works straight out of the box. No activation costs, no SIM card credit, no monthly subscriptions. The Tracker comes with a weeks tracking to get you up and running then you can pre purchase a PAYG Tracking package from here PAYG Tracking
Features
Live Tracking Mode Reports the trackers position at pre set intervals from as little as once every second, this can be changed from the tracking console or on the App.
History Replay the history and watch the tracker moving as if you are watching in real time or use the great reporting features that give you a detailed activity report of all the vehicles movements,showing speed,times parked, locations and much more as well as veiwing this on your PC or mobile device you can download the history in a excel,word or PDF great for giving to a client or using in evidence.
Zones Set a 360-degree virtual perimeter around an area, when the tracker breaks this barrier either entering, exiting or both it will send you an SMS to your mobile phone notifying you.
Park Mode
Once this mode command has been remotely sent to the device, the PCB will switch off. When the board moves it will switch back on and track every x seconds. The board will automatically switch off after 120 seconds of non-motion, this is a default setting that can be changed. This mode again increases battery life. The normal tracking mode will only be accepted by the tracker when it’s in a motion state.
Flight Mode: Remotely switch the device off and tell it to wake in a certain number of hours this is for a one off use unlike eco mode which repeats its self until cancelled.
Eco Mode The optional eco mode feature gives an extended battery life of up to 6 months by switching the tracker off for predefined periods. This mode also evades electronic detection as the tracker is effectively switched off. To cancel eco mode simply click the “eco mode off on the tracker panel and the panel will inform you when the device is due to wake and return to a normal live tracker, this is shown on the panel.
Log Mode this mode enables the tracker to be switched off for a set length of time but continue to log its position via GPS. When the tracker switches on again it will upload all of positions for you to view just as if it had been in live track mode.
Log mode has many advantages such as saving battery life and avoiding electronic detection as the tracker is not transmitting anything
Normal Tracking Mode
This is the most common mode that is used. Your tracker will simply sleep when not moving, it will keep the GSM module on, but turn off the GPS module, this also saves power. Once the tracker moves, it will turn on the GPS and track live every x second or minute.
Eco Mode
This mode will set the device to cycle through sleeping and updating its GPS position every X hours. To give you full control over the extent to which your device maximizes battery life, you are able to choose the length of sleep period. Once the device enters a period of sleeping, it cannot be manually woken up before it is due to wake automatically. To return the tracker to its normal state, simply click “Exit Eco Mode” from the Commands interface.
This mode can drastically improve the period of time your tracker will remain active for.
Flight Mode
This will set the tracker to sleep for a chosen period of time, regardless of its activity. This can be useful when saving battery life is a priority. The device will then wake once its period of sleep is over and begin to operate as usual.
Please note, once put into sleep mode, it is impossible to manually wake the device again before it is due to wake automatically.
Park Mode
Once this mode command has been remotely sent to the device, the PCB will switch off. When the board moves it will switch back on and track every x seconds. The board will automatically switch off after 120 seconds of non-motion, this is a default setting that can be changed. This mode again increases battery life. The normal tracking mode will only be accepted by the PCB when it’s in a motion state.
Specifications
GSM GSM/GPRS/EDGE: 850/900/1800/1900 MHZ
GSM Module: MTK 2503 Quad Band 2G
GNSS Specifications
(GPS+GLONASS)
GNSS Chipset MT3333
Sensitivity Autonomous: -147 dBm
Hot start: -156 dBm Reacquisition: -160 dBm
Tracking: -162 dBm
Position Autonomous: < 2.5m SBAS: < 2.0m
Accuracy (CEP) SBAS: < 2.0m
TTFF (Open Sky) Cold start: 29s average
Warm start: 27s average
Hot start: 1s average
Accelerometer 3 Axis- Kionix KXTJ2-1057
Battery 3000 mAh Lithium Polymer
Enclosure Rubber
Size 184mm-64mm-3mm
Charging Port Waterproof Type C
Works in most countries with no extra charges. If this is to be used outside of the UK please enquire.
