This PIR Alarm Sensor with built in camera and recorder is a self contained battery powered camera. Product code SC-PIRR1 is actually a high quality HD, PIR activated camera, it makes recordings straight onto an SD card whenever movement is detected, to cut out all of those hours of unwanted video footage that just take up memory/battery power.

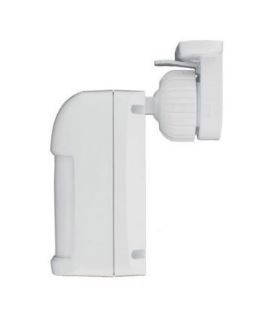

The camera comes ready to go complete with battery built in charger and remote control. This camera is designed for ease of use and can be operated by a single button press on the remote control. The bracket is equipped with a joint, so you can adjust the angle and direction of the camera.
• HD resolution.
• Up 120 days in standby based on 1 trigger per day.
• 16 hours of continuous recording.
• Supplied with a remote control.
• Video output for simple setup.
Video Resolution HD(1280*720P),D1(720*480),VGA(640*480).
Video Compression H.264.
Recording Video Format AVI.
Photo Resolution JPEG 1600×1200.
Frame rate 24FPS for HD.
View Angle 65 degree.
Motion Detect distance 8M.
Min Illumination 1.0lux.
Lens type Pinhole PIR distance 8M.
PIR Standby Time Max. 120 days.
Memory type Micro SD card (max up to 64GB, not included).
Memory Consumption HD:25 mins/GB, D1:38 mins/GB, VGA:80mins/GB.
A fully charged battery can record for up to 16 hrs and if used in the PIR activation mode it can remain in standby for up to 120 days depending on activity in the area of the camera. Please note if you use your own 64 GB micro SD card it needs to be reformatted to FAT32.
These are an approximate guide only as many factors can affect both the battery life and the storage consumption such as image content, light levels and temperature.
