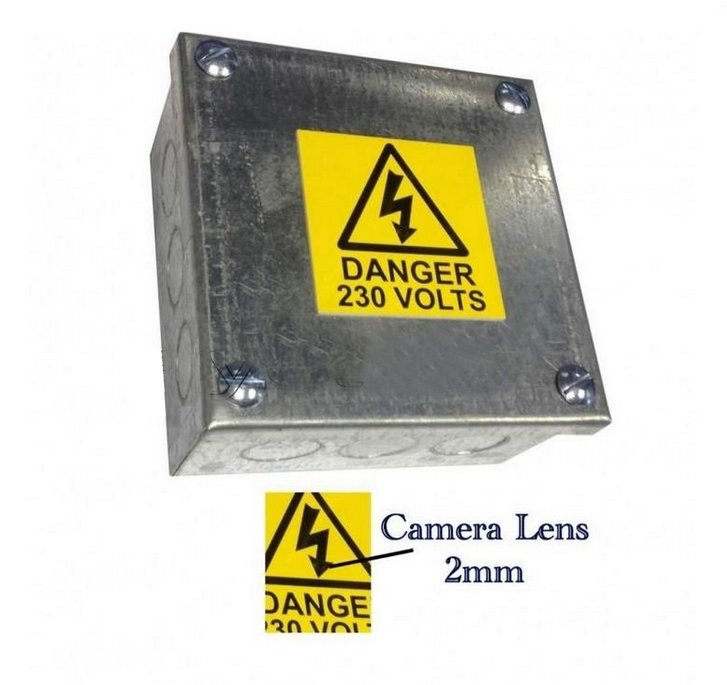

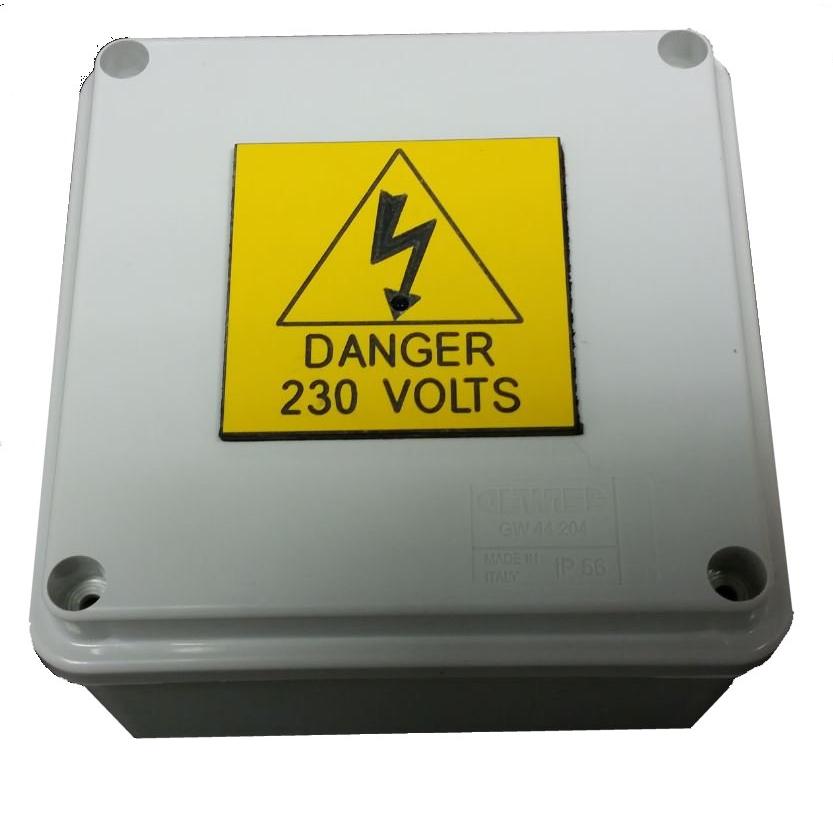

This Junction Box With Built In Surveillance Camera Video Recorder is undetectable to the untrained eye as it looks just like any industrial junction box. It can be powered from a internal battery or wired to a 12 volt power supply if you want to record on a permanent basis.
This clever Surveillance gadget records video/audio directly onto a Micro-SD Card. Time and Date can be set on the unit if you need this feature.
The camera comes ready to go complete with battery charger and SD card. This Surveillance camera is designed for ease of use and can be operated by a single button press. On the SD card is a programme that can interface with the camera and allow numerous settings to be changed if you so wish although the default settings that we send it out with are suitable for most people.
The setup programme requires window XP or above to run. The Setup programme is required to change settings but it is not needed to view recordings as these can be viewed with any programme that can view AVI files. We can set the unit to record using the mov format which plays in apple QuickTime if this is requested at the time of ordering.
Video: 1280 x 720 HD, 30 FPS, optional 848 x 480 30 FPS; 640 x 480 30 FPS
Video Format:.AVI) optional Mov
Angle of View – 70 degrees (approx
Supports up to 64GB micro SD card.
24 hrs battery life in standby using the standard battery
48 hrs battery life in standby with the long life version.
180 hrs battery life in standby with the Extreme battery. ( 7 days )
Storage consumption ( SD card)
2gb per hour at 1280 X 720 resolution H/D
1gb per hour at 640 x 480 resolution
Please note if you use your own 64 GB micro SD card it needs to be reformatted to FAT32
These are an approximate guide only as many factors can affect both the battery life and the storage consumption such as image content, light levels and temperature
