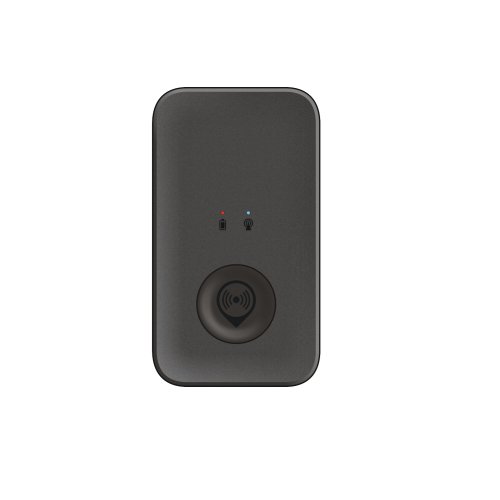

ET22 GPS Person-Asset Tracker

A pocket size GPS tracker with a thumb size SOS button on the front which can be used to send an alert and GPS location  to the tracking console and a mobile phone, making this ideal for use by lone workers and vulnerable people.
The small size and light weight make it a versatile tracker that lends its self to many other uses such as vehicle and asset tracking.

Supplied ready to use ET22 works straight out of the box, switch it on and your up and running. No activation costs, no SIM card credit, no monthly subscriptions. You have the freedom to pay as you track. This is done by pre purchasing position credits so you really do pay as you track for further details click on this link Tracker position credits

The tracker uses a superb web based tracking console with your own unique user ID., not only can you view your tracker from our online console, you can also track the device from your mobile phone or tablet using our free Apps for apple and android devices.

Up to 20 days battery life depending on mode and settings.

 Multiple operating modes

Live Tracking Mode

Reports the  trackers position at pre set intervals from as little as once every 5 seconds, this can be changed from the tracking console or on the App.

Park Mode

Once this mode command has been remotely sent to the device, the PCB will switch off. When the board moves it will switch back on and track every x seconds. The board will automatically switch off after 120 seconds of non-motion, this is a default setting that can be changed. This mode again increases battery life. The normal tracking mode will only be accepted by the PCB when it’s in a motion state.

Flight Mode

Remotely switch the device off and tell it to wake in a certain number of hours this is for a one-off use unlike eco mode which repeats its self until cancelled.

Eco Mode

The optional eco mode feature gives an extended battery life by switching the tracker off for predefined periods. This mode also evades electronic detection as the tracker is effectively switched off. To cancel eco mode simply click the “eco mode off on the tracker panel and the panel will inform you when the device is due to wake and return to a normal live tracker, this is shown on the panel.

History Replay

The history and watch the tracker moving as if you are watching in real time or use the great reporting features that give you a detailed activity report of all the vehicles movements,showing speed ,times parked, locations and much more as well as viewing this on your PC or mobile device you can download the history in a excel,word or PDF great for giving to a client or using in evidence.

Zones

Set a 360-degree virtual perimeter around an area, when the tracker breaks this barrier either entering, exiting or both it will send you an SMS to your mobile phone notifying you.

Specifications

Battery 2600 mAh Li-Polymer battery

Weight 95g

Cellular antenna Internal

Data Support     SMS, UDP or TCP, WCDMA packet data

Operating Bands (MHz) Quad band: 850/900/1800/1900 MHz

GSM/GPRS: 850/900, 33dBm, 1800/1900, 30 dBm

WCDMA band: B1, B2, B4, B5, B8

Transmitting Power        HSPA/UMTS: All bands, 23 dBm

GNSS     GPS & GLONASS

Location Accuracy            2.5 meter CEP (with SBAS)

Tracking Sensitivity         -162dBm

Acquisition Sensitivity    -147dBm

Temperature     -20° to 55° C (operating) / -40° to +85°C (storage)

Humidity              95%RH @ 50° C non-condensing

RoHS Compliant                Yes

Dimensions  74.8 x 42.5 x 27 (mm)

Works in most countries with no extra charges.
